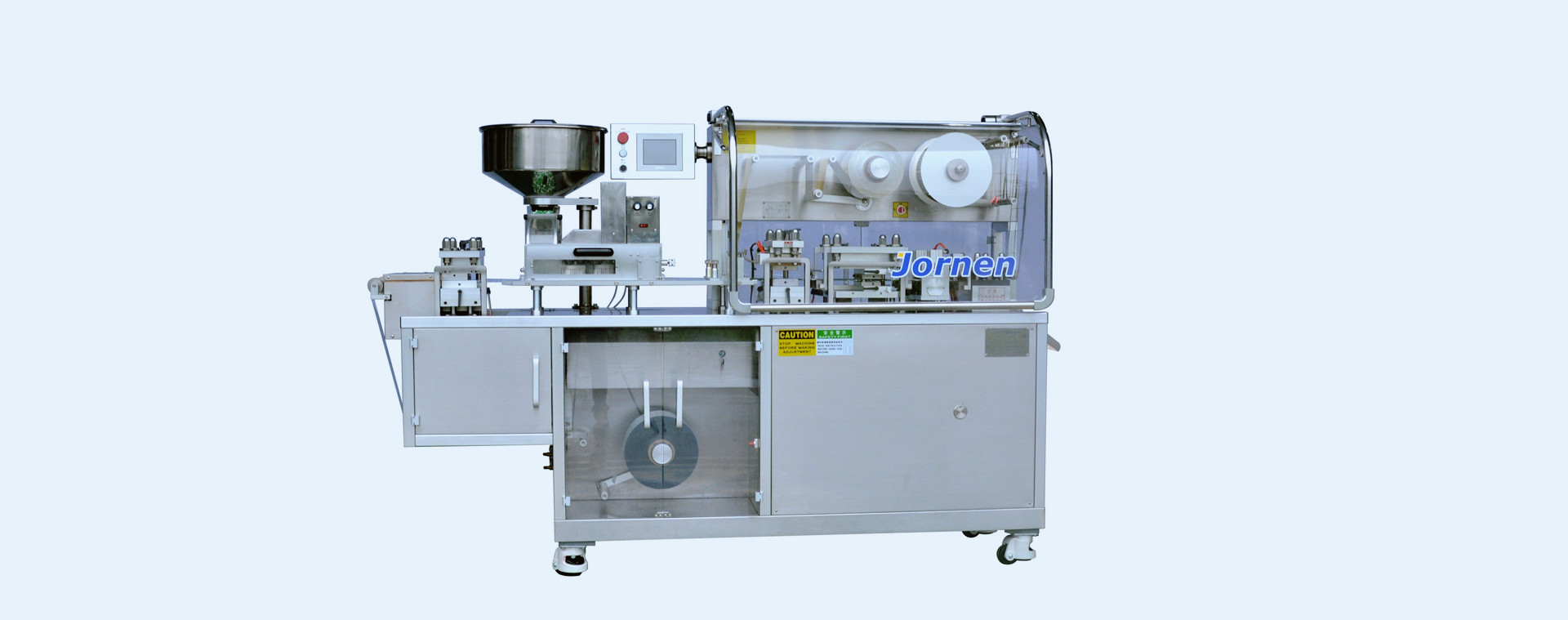

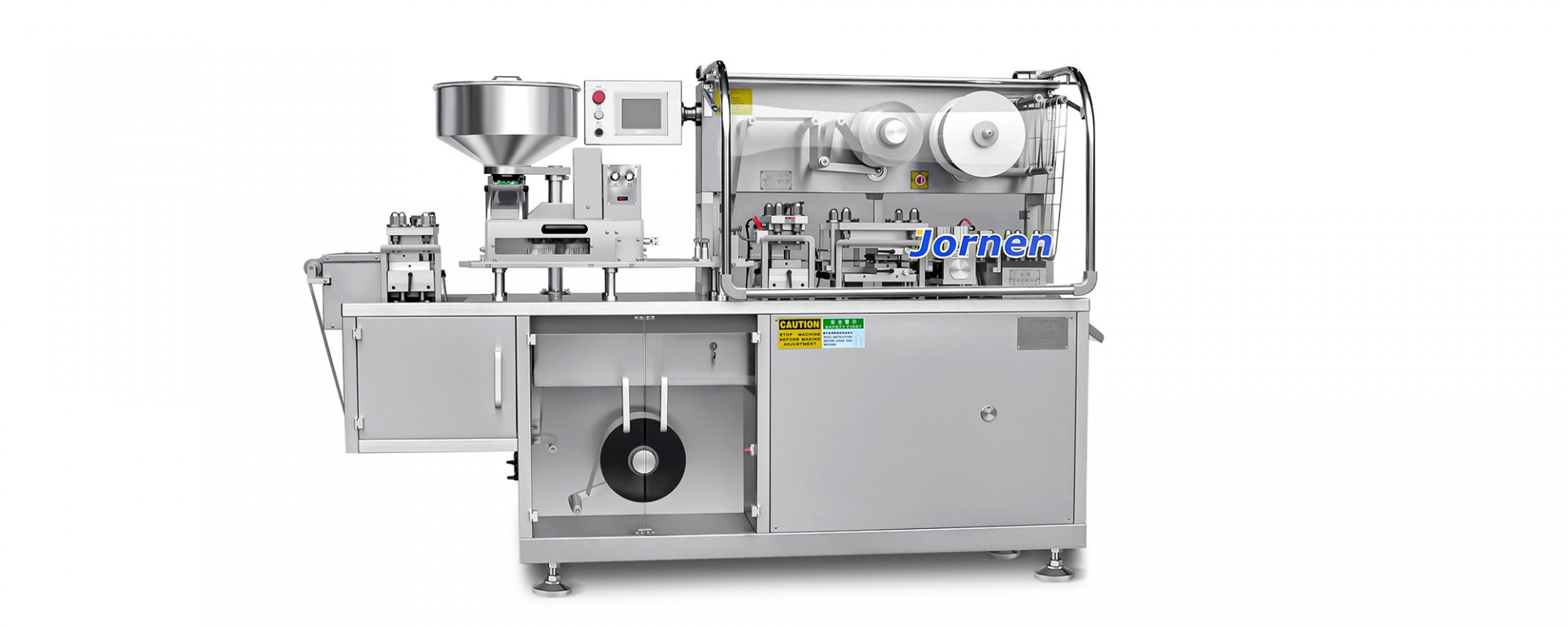

Blister Machine DPP150K-2
· Blister Packing Machine DPP150K-2 is small and suitable for the blister packaging of capsules, tablets (irregular tablets) and pills, etc., for small batch production.
· Extremely straightforward format changeover.
· All the main parts are made of premium stainless steel and alu-alloy material and machined by advanced high-precision CNC tooling machines.
· Sealing pressure adopts the gas-hydraulic pressure cylinder, so the pressure can be set freely according to the sealing area (commonly a larger sealing area requires higher pressure.
· All the main parts are made of premium stainless steel and alu-alloy material and machined by advanced high-precision CNC tooling machines.
· The blister length can be set freely through Touch Screen User Interface, which reduces the time for a format changeover.
· Material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.
· Separation of drive and operating zones are in compliance with pharmaceutical GMP requirements.
· The upper and lower plates adopt a contact heating method that significantly reduces the forming temperature. Thus the shrinkage, deforming of packaging material and power consumption are minimized.
· Using a fast lock method enables the replacement of lidding material easily within 10 seconds.
· It is suitable for plastic thermoforming and aluminum cold-forming blister packaging.
· This machine can be custom-built to produce plastic thermoformed trays with maximum forming depth reaching 50mm.
Forming material reel of the Blister Machine.
The Forming Station of the Blister Machine.
The Universal Feeder consists of two circular brushes and planetary agitators, which sweep the products into blister pockets. Format parts are not required.
The hopper which is made of 316 stainless steel adopts stretching forming processes and mirror polish without any weld seam. It is in total conformity to pharmaceutical GMP requirements.
The flat tablets, capsules or oblongs are fed via tracks or tubes into the aluminium blisters.
The lidding material loader and waste grid wind-up mechanism.
Tool-free changeover of format parts, reduces down-time between production batches.
The web index adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.
The Sealing, Embossing, Cutting Station of the Blister Machine.
The machine adopts an exquisite camber transparent guard cover assuring safe operation.
Pinhole detection system for quality assurance of blister packaging (optional).
Max. Speed: alu/pvc 60punches/min. alu/alu 40punches/min.
Max. Forming Area: 135×120mm
Max Forming Depth: 12mm
Material: Max. width 150mm
Machine Power: 4.7kw
Machine Dimension: 2400×600×1700mm
Machine Weight: 800kg
