Blister Line BPL500R (Blistering/Pillow Packing/Cartoning)
The video of this line:
https://www.youtube.com/watch?v=fMIOAI2qu1k
https://youtu.be/IoiSCTEyruA?si=8e0gUkm0TflPVTJ6

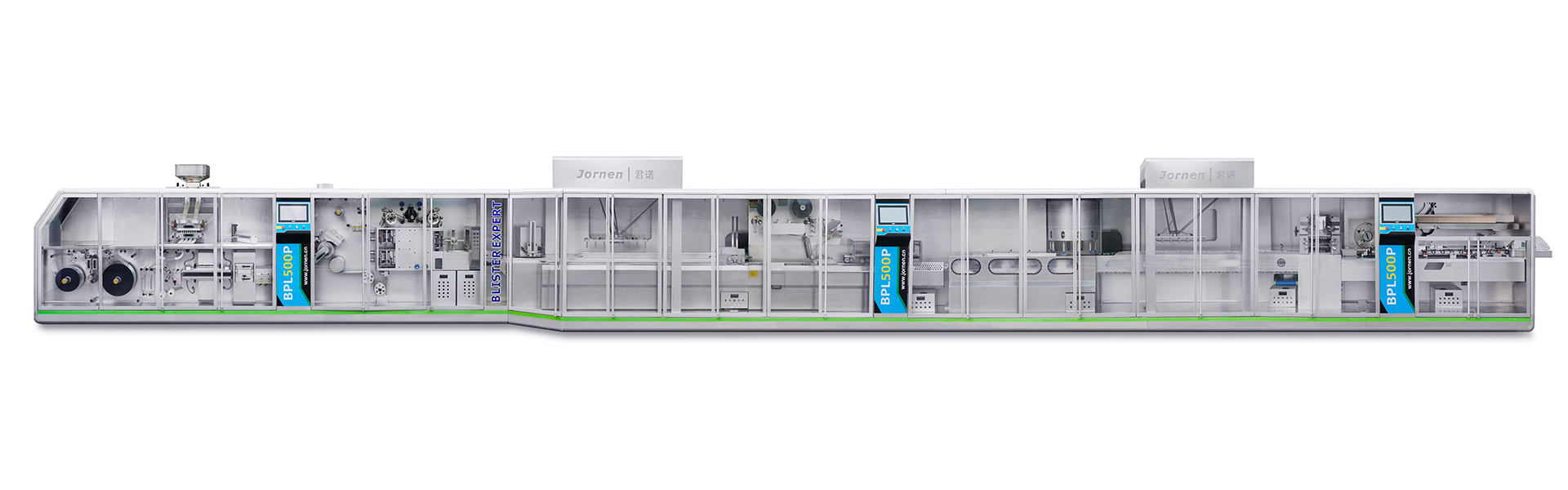

This blister packaging line consists of three units: a blistering unit, a pillow packing unit, and a cartoning unit. Incorporating pillow packaging after blister packaging can significantly enhance the barrier properties of the packaging and prolong the medicine’s shelf life.
The entire line consists of multiple stations, each with an independent servo drive. These stations can package drugs in two ways: 1. blistering, pillow packing, and cartoning packaging; 2. blistering and cartoning packaging. Due to the servo control, it is highly flexible and can easily switch between the two types of packaging.
The Blister unit features a cantilever structure, with the driving system fully isolated from the operating area. This makes daily maintenance and cleaning easier, prevents cross-contamination, and complies with pharmaceutical GMP requirements.
A delta robot transfers blister cards to the pillow packing or cartoning unit for efficient and stable packaging. Once pillow packing is complete, a circular turntable robot transfers the pouches to the cartoning unit.
The product-inserting device in the cartoning unit is positioned at the back of the machine. This design optimizes ergonomics compared to traditional cartoning machines, where the product-inserting device is installed in the front and protrudes from the operating surface.
It boasts a uniquely enclosed design, perhaps the most elegant blister line in the world.
See our machines’ performance.
Equipped with an integrated forming material splicer to enhance efficiency during material replacement
GMP-compliant cantilever (balcony type) layout for easy pharmaceutically compliant cleaning
The indexing system adopts a precise servo motor to achieve stable, accurate running
The Multiple Tube Feeder synchronously with the running webbing to fill the entire index
After feeding, the clearing brush removes extra capsules from the webbing to prevent them from entering the sealing station.
This Blister Machine adopts rotary sealing and grid sealing type
The high-speed embossing and perforation station; the speed ratio with the forming station can be set freely
The blister cards are punched, collected by the vacuum arm
A delta robot transfers blister cards to the pillow packing or cartoning unit
When the first reel's film runs out in the pillow-packing unit, it can automatically connect with the second without interruption to the machine.
The servo-regulated rotary robot picks up pillow pack and transfers them to cartoning machine synchronously
The Leaflet Folding Device make the leaflet fold one to four-folds
Long carton magazine approximately accommodates 1500 cartons
The rotary carton feeder pick up cartons then places them in carton conveyor chain
Optimized ergonomic design places the inserter device at the machine's rear side, making it more convenient to operate.
In carton conveyor chain the cartons are closed automatically
Ergonomic design sliding door assure safe and convenient operation
Colour Touch Screen User Interface
Blister unit
Connection unit
Cartoning unit
It boasts a uniquely enclosed design, perhaps the most elegant blister line in the world
