Blister Line BPL300

Video of this Blister Line 300:

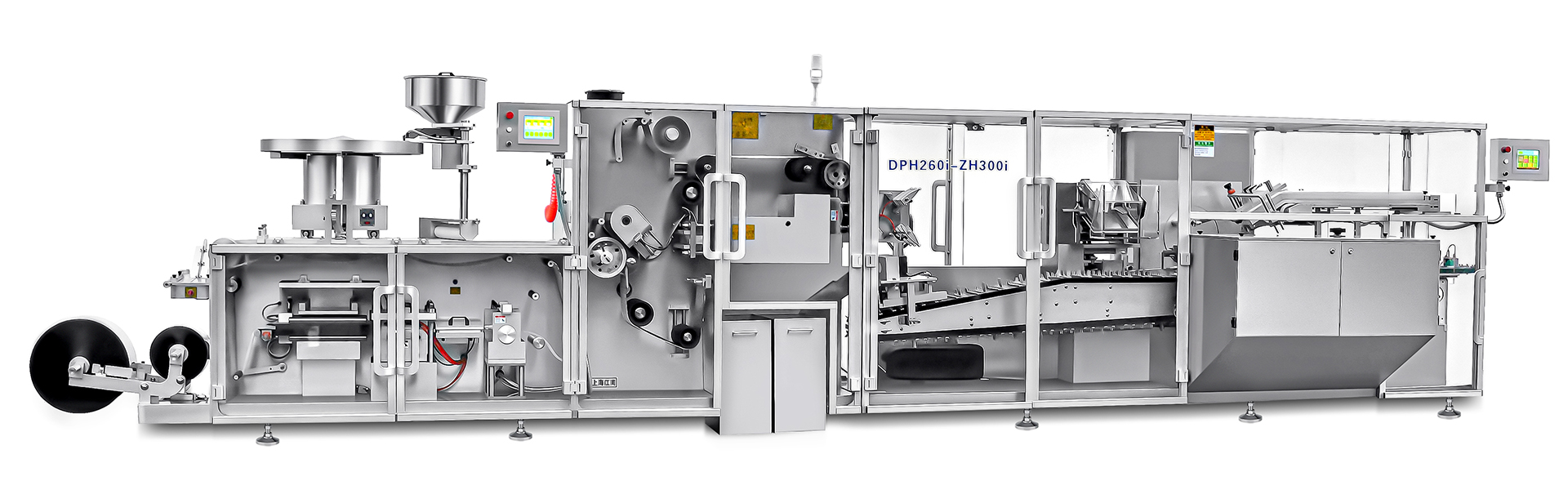

This Blister-Cartoner Line is combined with the DPH260i Blister Machine and ZH300i Cartoner.
Through the integration of a blister and cartoner module for packaging and cartoning of pharmaceutical tablets, capsules, and ampoules, this Blister Packaging Line is Jornen’s innovative response to the need for high efficiency and low-cost operation, flexibility, and maximum productivity for mass batch production.
·Processes all common solid dose products and all types of forming material.
·The machine can achieve 180 minutes of uninterrupted production thanks to the Blister module with forming material reels of up to 600mm in diameter and a waste material trimming cutter.
·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.
·The heart of a Blister Line is the connection between the Blister Machine and Cartoner. In this line, the connection phase is truly innovative thanks to rotary blister cards pick-up arms and the blister counting magazine that adopt precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
·The blister and cartoner unit were optimally combined in this line, less than nine meters in length, it provides easy changeover for different sizes of formats and cartons.
·This line adopts the fully-enclosed structure and safety door, it is in line with the most stringent European safety standards.
Gallery

  • The blister Packaging module accommodates two forming material reels. One of the reel’s diameter can reach up to 600mm, therefore, reducing the material replacement frequency.

  • This machine is equipped with an integrated forming material splicer to enhance efficiency during material replacement.

  • The forming station adopt contact heating method that significantly reduces the forming temperature.

  • Forming material drag system adopts a precise servo motor to achieve stable, accurate running and allows blister length to be set freely.

  • Capsules are fed via tracks or tubes into the blisters.

  • After feeding, the clearing brush removes extra capsules from the webbing to prevent them from entering the sealing station.

  • Track feeder for capsules, flat and oblong tablets; consists of a hopper, vibratory chute, vibratory conveyor and tracks.

  • This Blister Machine adopts rotary and grid sealing type.

  • Blister Packing Machine embossing station.

  • Rotary sealing station and embossing station.

  • There are two waste tanks here for alternative use.

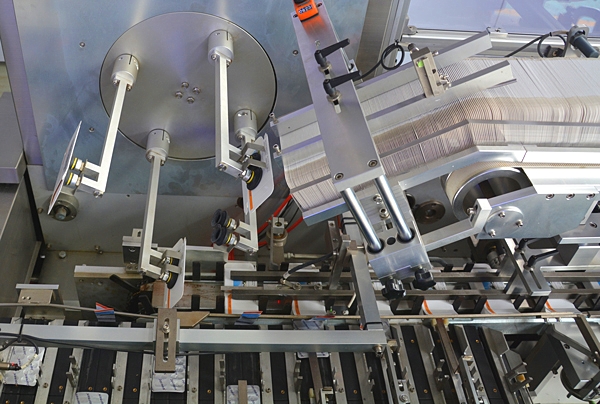

  • The blister cards are punched transversely in blister module, collected by the vacuum arm and transferred to the cartoner module.

  • Inside the magazine, the blister cards are counted when they free fall via the servo-motor, and are then held in position by the transfer belt.

  • The Leaflet Folding Device make the leaflet fold one to four folds, can adopt GUK Leaflet Folder (optional).

  • Rotary carton feeder pick up cartons then places them in carton conveyor chain.

  • Long carton magazine for approximately 1000 cartons.

  • Adopts digital position indicator achieves straightforward adjustment.

  • Pinhole detection system for quality assurance of blister packaging (optional).

Main Technical Parameters

Max. Output: 300cartons/min.
Range of Carton Size: Max.: 200x90x60mm Min.: 75x30x15
Machine Power: 21.3kw
Machine Dimension: 8800x2000x2000mm
Machine Weight: 6800kg
