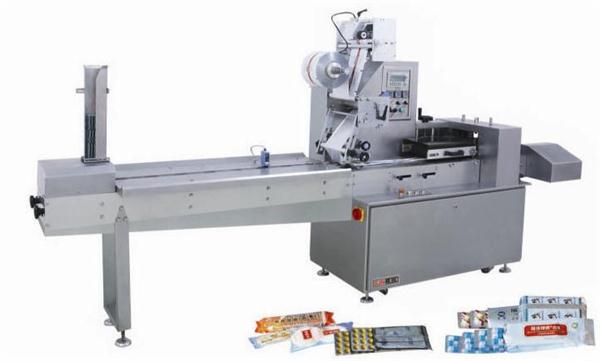

Pillow Packing Machine
The Pillow Packing Machines wrap many types of commodities including blister sheets, facial paper, soaps, biscuits, candies, chewing gum and instant noodles, and other rectangular, square, round or irregularly shaped products.
•Provides protection from light, moisture and dust.
•Suitable for packing a variety of solid shapes and material.
•Can pack a variety of sizes, quickly and safely.
•Package cut-off length can be calibrated by hand wheel.
•All contact parts are made of stainless steel.
•Optional electronic color code tracing device to make sealing and cutting positions accurate.
•Suitable for any heat sealable laminated film such as Polyester/Poly, Polyester/Met, Polyester/Poly, Bopp/Foil/Poly, heat sealable BOPP and Pearlised BOPP etc.
Main Technical Parameters of Pillow Packing Machines :
Main Technical Parameters Of Pillow Packing Machine
Model:
ZDP250
ZDP400
Output:
30-150 package/min.
30-150 package/min.
Packaging Size(LxWxH):
(60-190)x(30-110)x(5-40)mm
(60-190)x(30-180)x(5-60)mm
Max. Width of Film:
250mm
400mm
Machine Power:
2.4kw
2.65kw
Machine Dimension:
3350x650x1800mm
3500x800x1800mm
Machine Weight:
700kg
800kg
