Blister Packaging Lines

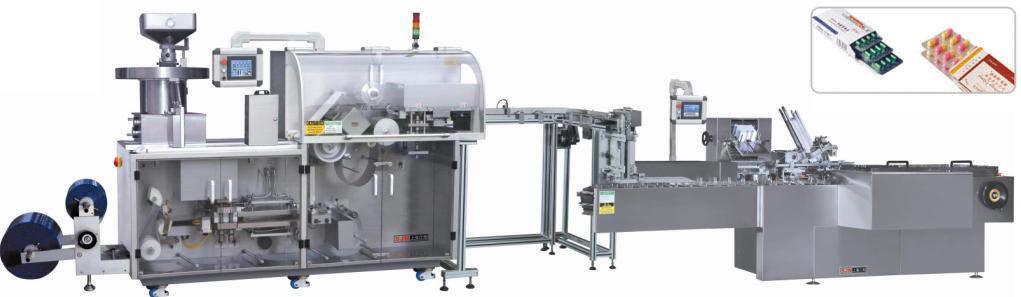

This Blister-Cartoner Line is combined with DPH190 Blister Machine and ZH180 Cartoner.
·The line’s maximum output reaches 180cartons/minute, processing  all common solid dose products and all types of forming material.
·Blister module with forming material reels of up to 600mm in diameter can run for 90 minutes of uninterrupted production.
·Capable of all standard types of closure systems for cartons from tuck-in to hot-melt.
·The heart of a Blister Line is the connection between the Blister and Cartooning machine. In this line, the connection phase adopts a transport belt and blister counting magazine with precise servo technology. These accurately control blister transfer, faulty blister rejection, positioning, and feeding, etc., to assure the stability of high running speed.
·It is the best choice for high-end customers who want to achieve high efficiency and low cost.
DPH190 Blister Machine's Main Technical Parameters:
Max.Speed:                               alu/pvc:200punches/min. alu/alu:100punches/min.
Machine Power:                         15kw
Machine Dimension:                   2830x950x2000mm
Machine Weight:                        2000kg
ZH180 Cartoner's Main Technical Parameters:
Max. Output:                            180 cartons/min.
Range of Carton Size:                Max.: 160x110x60mm Min.: 55x30x15mm
Machine Power:                         3kw
Machine Dimension:                   4500x1620x1600mm
Machine Weight:                        1200kg
